Grandstream Шлюз FXS серии GXW и HT812

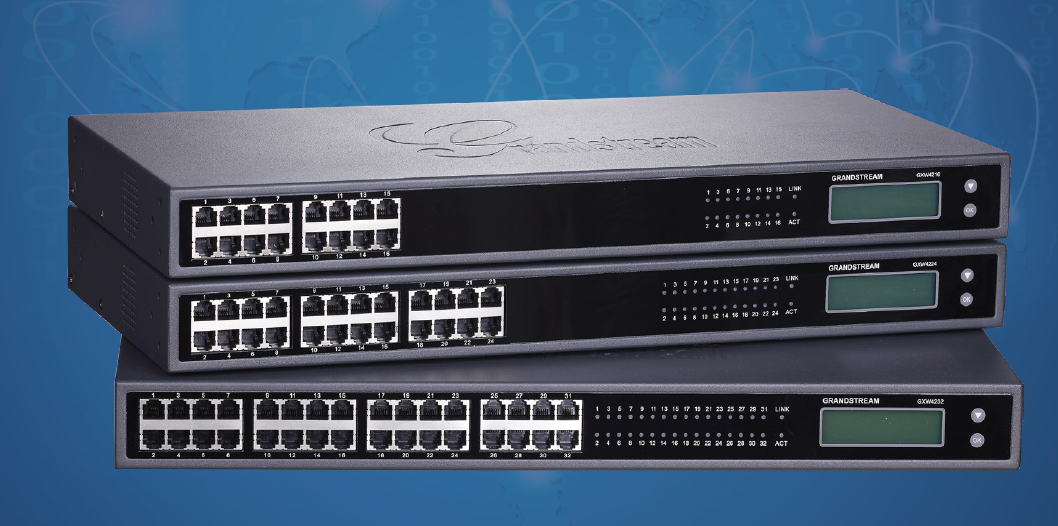

Аналоговый VoIP шлюз GXW4216/4224/4232/4248 — оснащен 16/24/32/48 FXS аналоговыми портами.

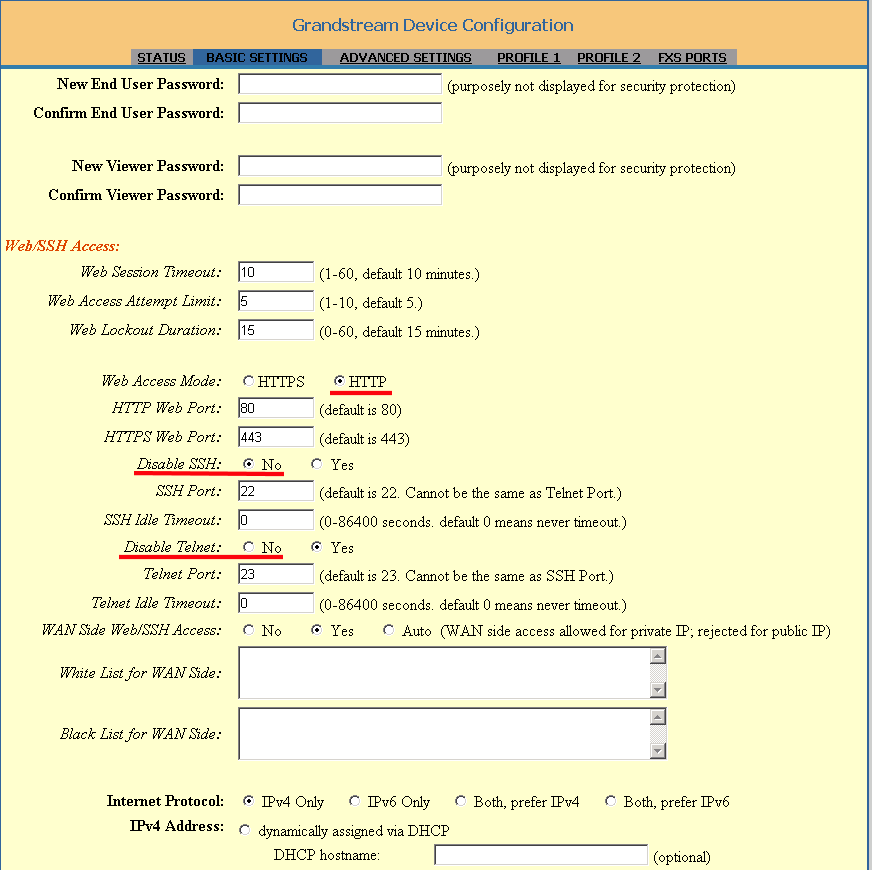

End User Level user 123 - Only Status and Basic Settings
Administrator Level admin admin - Browse all pages
Viewer Level viewer viewer - View all pages. Not allowed to modify the content.
GXW Voice Prompts - press ***
Enter * for the next menu option
Enter # to return to the main menu
Enter 001 – 099 Menu option
Enter 9 for confirming an option
001 - DHCP Mode
002 - The current WAN IP address is announced. Enter 12-digit new IP address if in Static IP Mode.
099 - Enter "9" to reboot the device; or Enter MAC address to restore factory default setting
Либо нажать иглой кнопку на 4 секунды рядом с разъемом питания.
700-748 Phone calls between different ports of the same GW42xx
700 - Ring all ports and connect to first port pick up the call
End User Level user 123 - Only Status and Basic Settings
Administrator Level admin admin - Browse all pages
Viewer Level viewer viewer - View all pages. Not allowed to modify the content.
GXW Voice Prompts - press ***
Enter * for the next menu option
Enter # to return to the main menu
Enter 001 – 099 Menu option
Enter 9 for confirming an option
001 - DHCP Mode
002 - The current WAN IP address is announced. Enter 12-digit new IP address if in Static IP Mode.
099 - Enter "9" to reboot the device; or Enter MAC address to restore factory default setting
Либо нажать иглой кнопку на 4 секунды рядом с разъемом питания.
700-748 Phone calls between different ports of the same GW42xx
700 - Ring all ports and connect to first port pick up the call

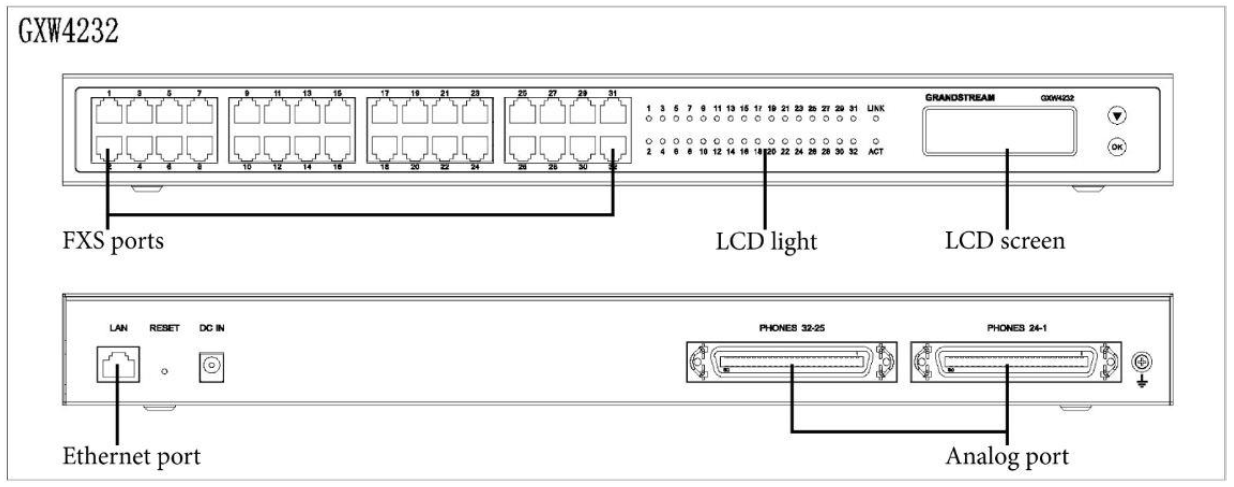

GXW4232

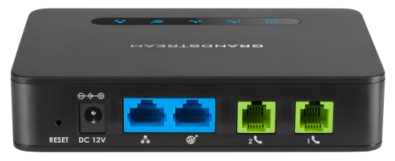

HT-812
Аналоговый VoIP шлюз GXW4216/4224/4232/4248 — оснащен 16/24/32/48 FXS аналоговыми портами.
End User Level user 123 - Only Status and Basic Settings
Administrator Level admin admin - Browse all pages
Viewer Level viewer viewer - View all pages. Not allowed to modify the content.
GXW Voice Prompts - press ***
Enter * for the next menu option
Enter # to return to the main menu
Enter 001 – 099 Menu option
Enter 9 for confirming an option
001 - DHCP Mode
002 - The current WAN IP address is announced. Enter 12-digit new IP address if in Static IP Mode.
099 - Enter "9" to reboot the device; or Enter MAC address to restore factory default setting
Либо нажать иглой кнопку на 4 секунды рядом с разъемом питания.
700-748 Phone calls between different ports of the same GW42xx
700 - Ring all ports and connect to first port pick up the call

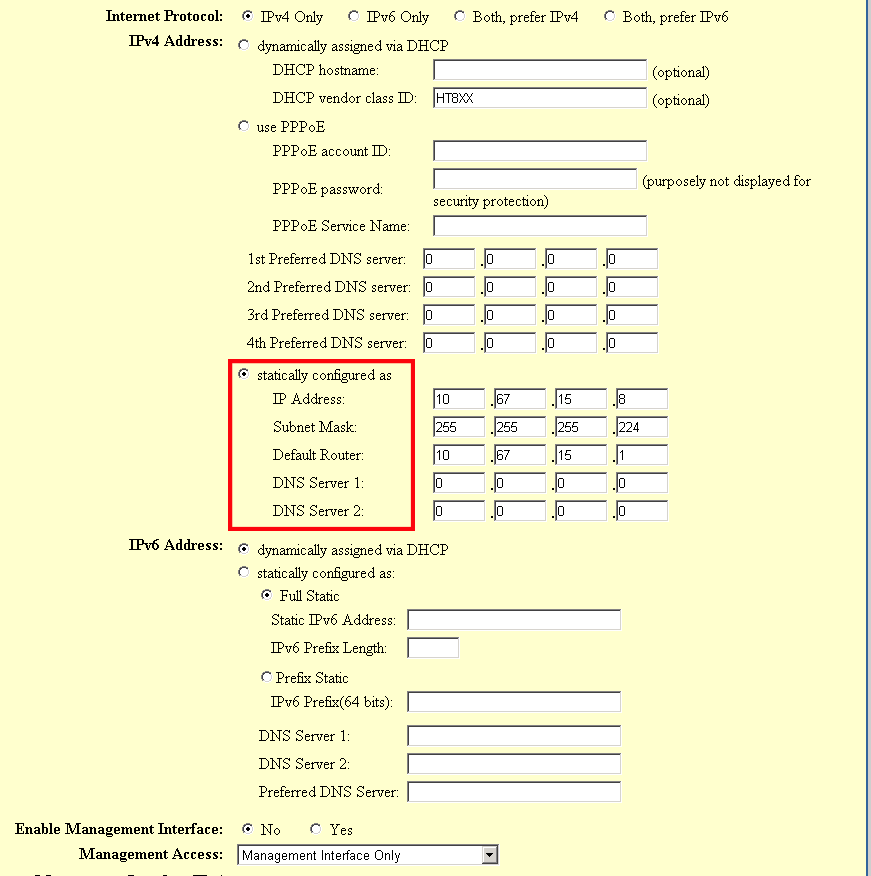

Network Settings
IP Address Configures static IP Address, Subnet Mask, Gateway, DNS Server 1,
and DNS Server 2.
Enable management interface

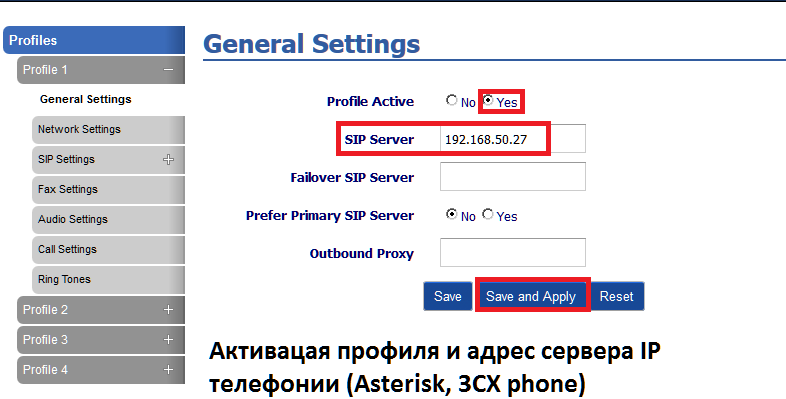

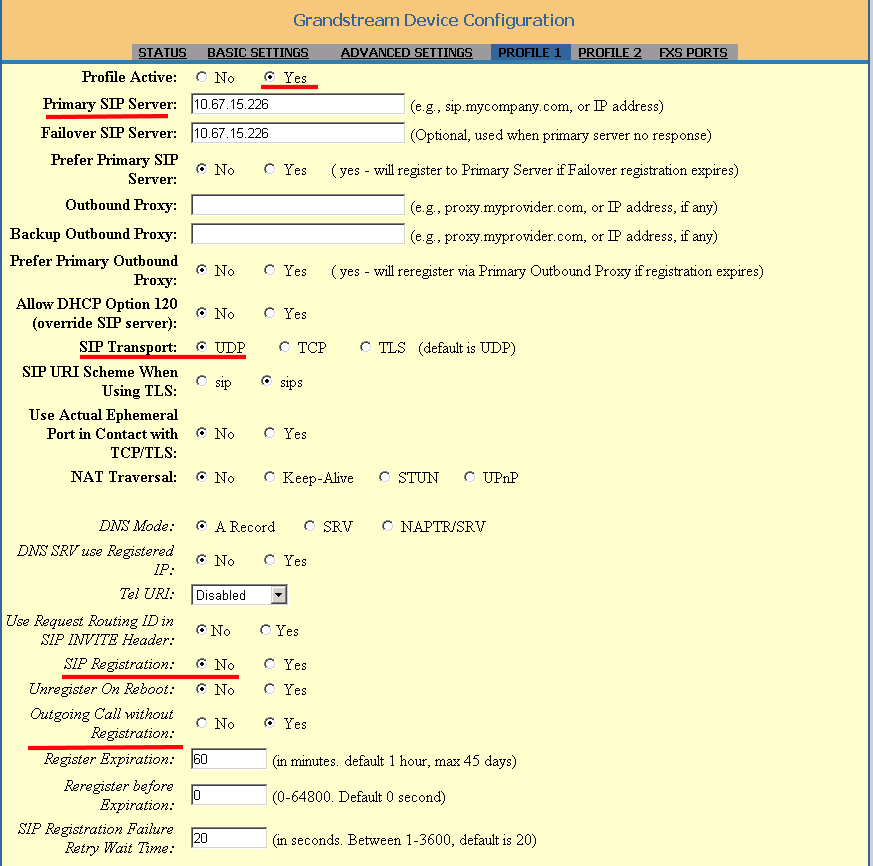

Profiles
Profile Active Yes
SIP Server IP
End User Level user 123 - Only Status and Basic Settings
Administrator Level admin admin - Browse all pages
Viewer Level viewer viewer - View all pages. Not allowed to modify the content.
GXW Voice Prompts - press ***
Enter * for the next menu option
Enter # to return to the main menu
Enter 001 – 099 Menu option
Enter 9 for confirming an option
001 - DHCP Mode
002 - The current WAN IP address is announced. Enter 12-digit new IP address if in Static IP Mode.
099 - Enter "9" to reboot the device; or Enter MAC address to restore factory default setting
Либо нажать иглой кнопку на 4 секунды рядом с разъемом питания.
700-748 Phone calls between different ports of the same GW42xx
700 - Ring all ports and connect to first port pick up the call
Network Settings
IP Address Configures static IP Address, Subnet Mask, Gateway, DNS Server 1,
and DNS Server 2.
Enable management interface
Profiles
Profile Active Yes
SIP Server IP
GXW4232

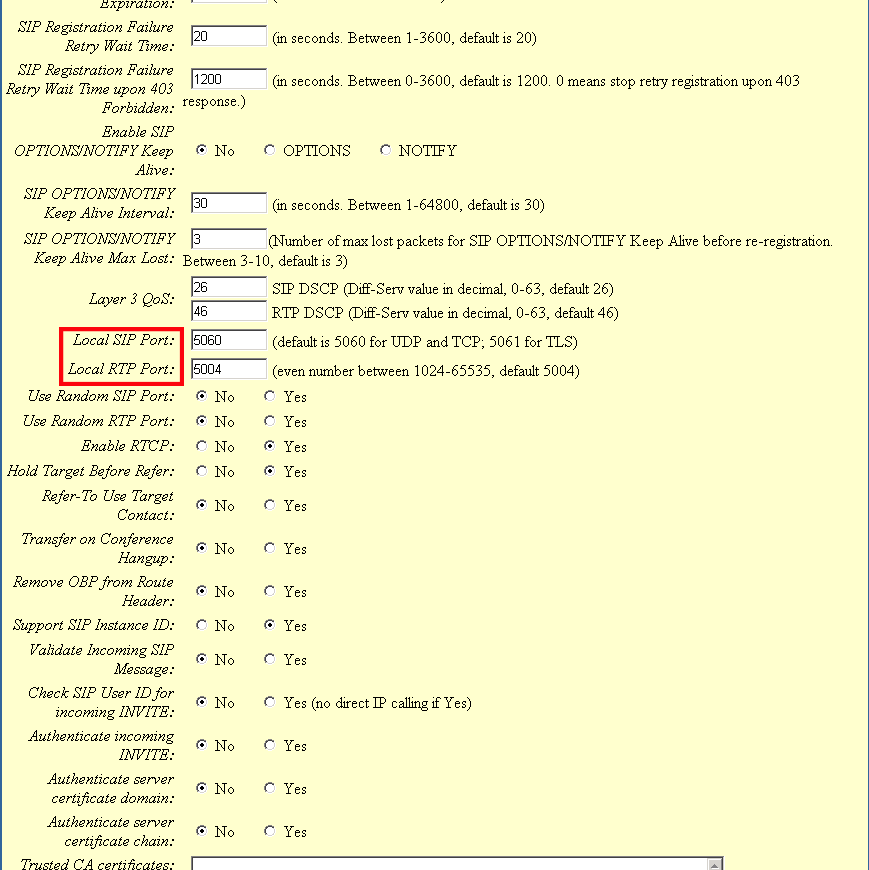

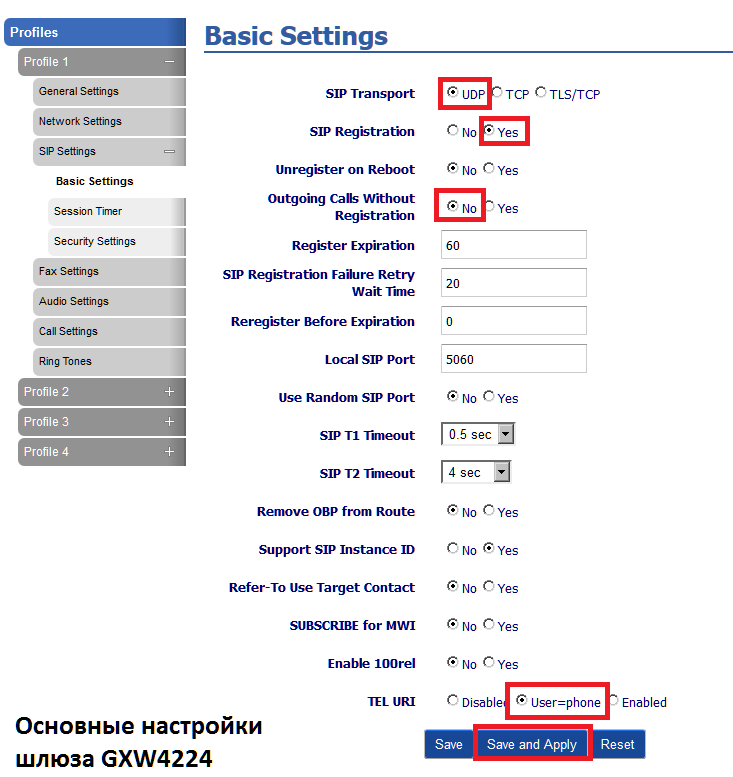

SIP Settings
SIP transport UDP
SIP Registration NO
Outgoing Calls Without Registration YES
Local SIP Port 5060
Local RTP port 50000
Caller ID Display Auto

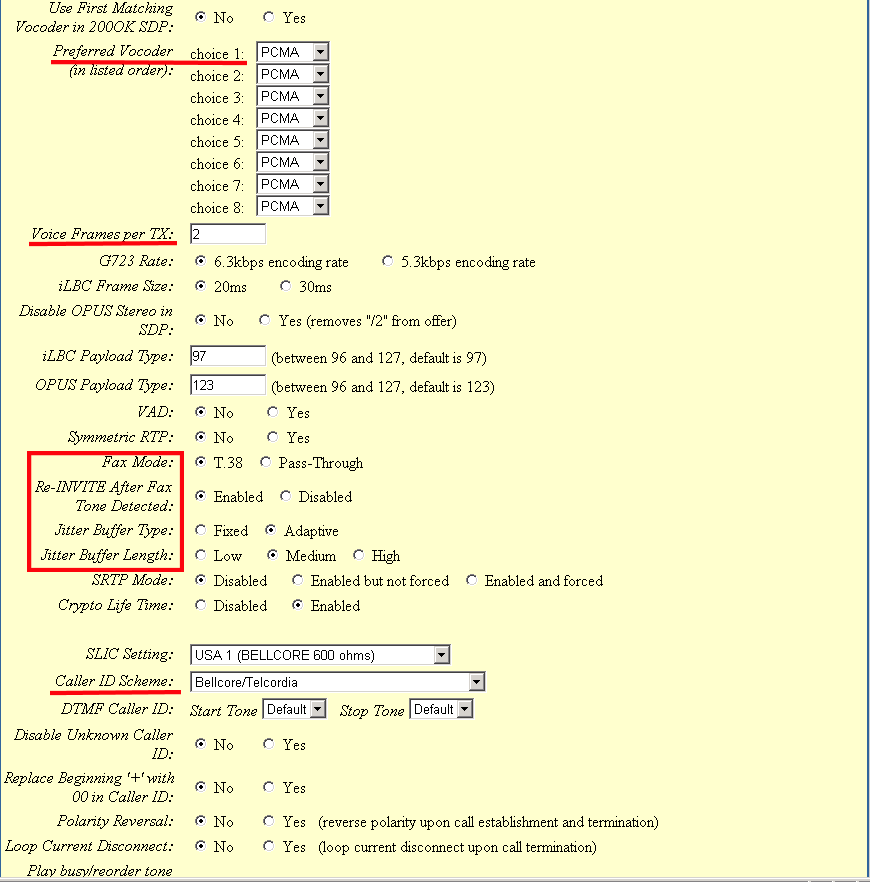

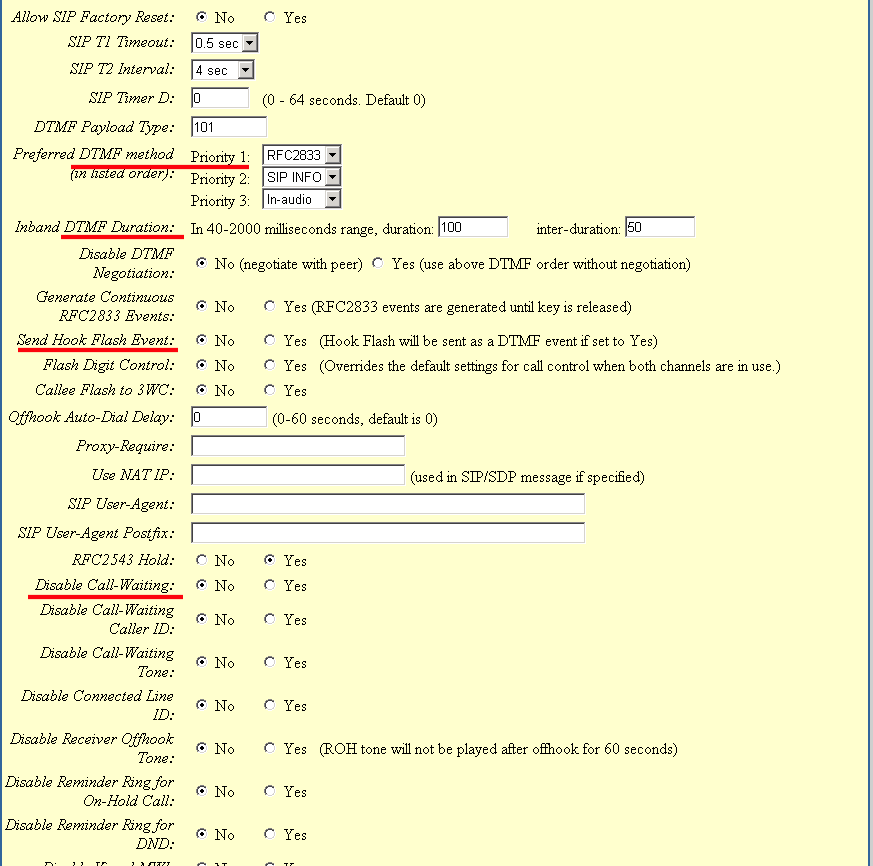

Audio Settings
DTMF Payload Type RFC2833
Preferred Vocoder G.711

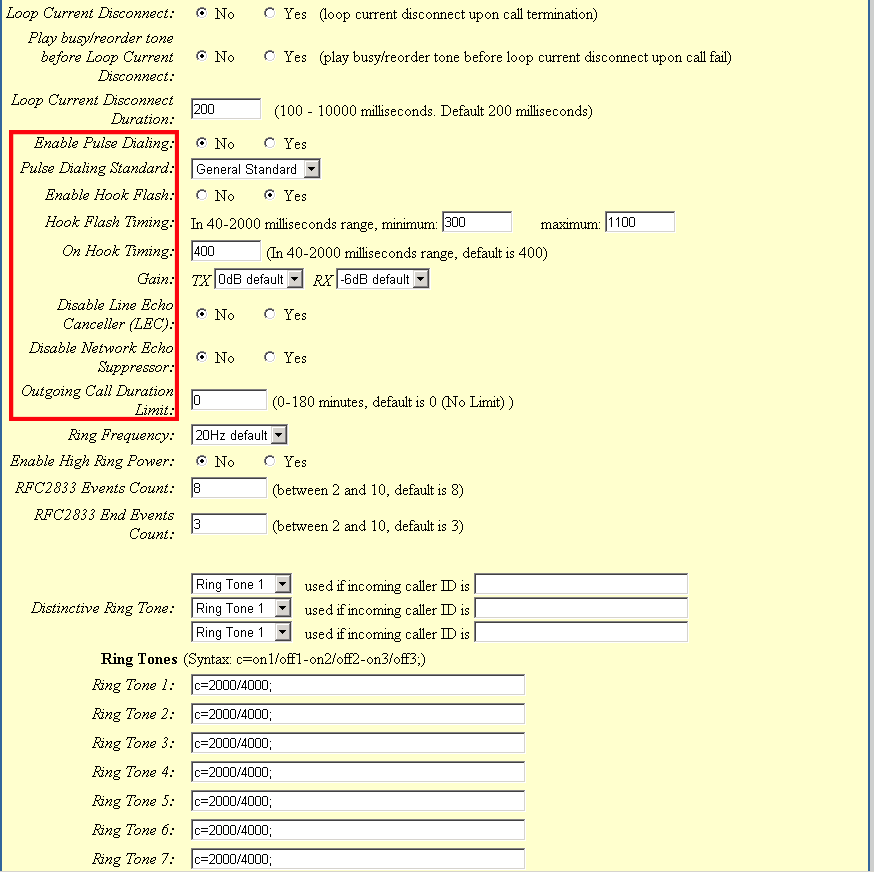

Enable Hook Flash YES on-hook event
On Hook Timing 800 milliseconds
Gain Handset volume adjustment. Loudest volume: +6dB
Настройки для факса:
Silence Suppression NO
Jitter Buffer Type Fixed
Jitter Buffer Length High

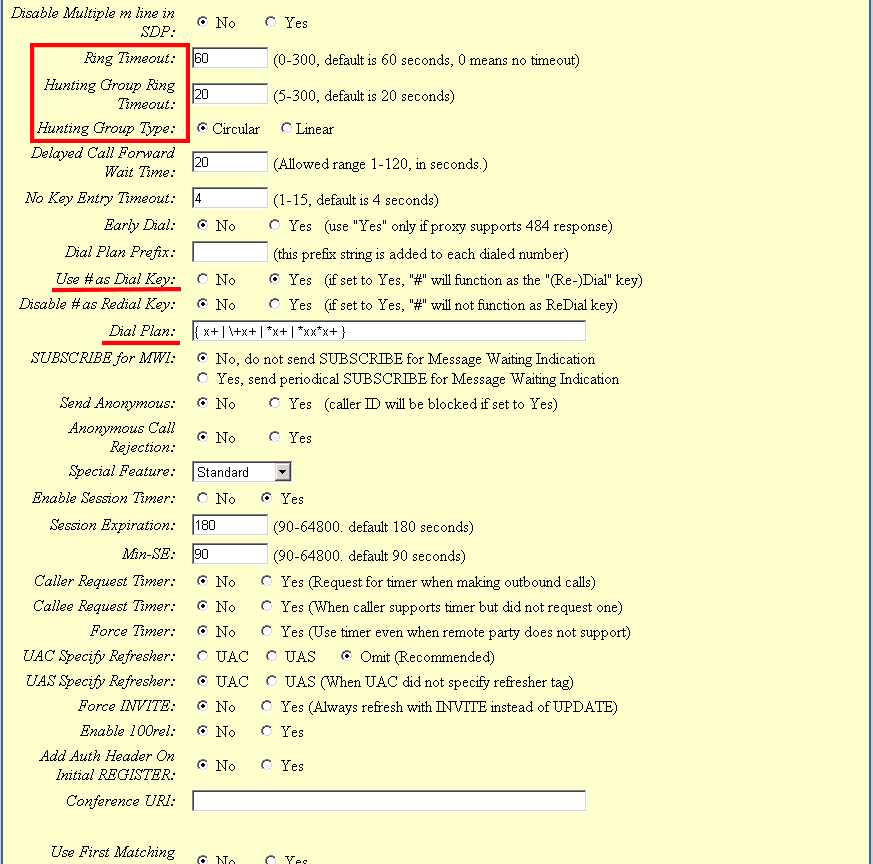

Call Settings
Early Dial NO - ENblock
Dial Plan Prefix - prefix added to each dialed number.
Dial Plan Rules:
^810x+ - Запрет МН
[3-59] - any digit of 3, 4, 5 or 9;
<=8495>xxxxxxx - добавить префикс к набранному 7-ми значному номеру
<9=8495>x+ - заменяет 9 на 8495
| - or
Пример { ^1900x. | <=1617>[2-9]xxxxxx | 1[2-9]xx[2-9]xxxxxx | 011[2-9]x. | [3469]11 }
Use # as Dial Key YES
No Key Entry Timeout Default is 4 seconds

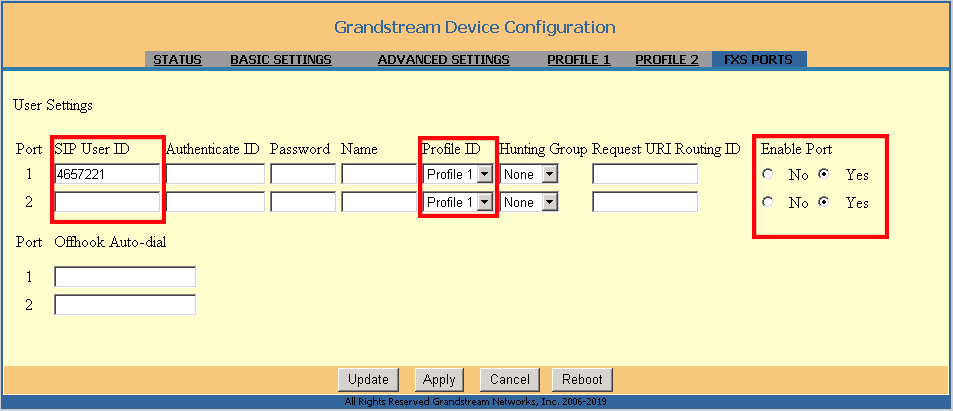

FXS Ports
SIP User ID -phone number.
SIP transport UDP
SIP Registration NO
Outgoing Calls Without Registration YES
Local SIP Port 5060
Local RTP port 50000
Caller ID Display Auto
Audio Settings
DTMF Payload Type RFC2833
Preferred Vocoder G.711
Enable Hook Flash YES on-hook event
On Hook Timing 800 milliseconds
Gain Handset volume adjustment. Loudest volume: +6dB
Настройки для факса:
Silence Suppression NO
Jitter Buffer Type Fixed
Jitter Buffer Length High
Call Settings
Early Dial NO - ENblock
Dial Plan Prefix - prefix added to each dialed number.
Dial Plan Rules:
^810x+ - Запрет МН
[3-59] - any digit of 3, 4, 5 or 9;
<=8495>xxxxxxx - добавить префикс к набранному 7-ми значному номеру
<9=8495>x+ - заменяет 9 на 8495
| - or
Пример { ^1900x. | <=1617>[2-9]xxxxxx | 1[2-9]xx[2-9]xxxxxx | 011[2-9]x. | [3469]11 }
Use # as Dial Key YES
No Key Entry Timeout Default is 4 seconds
FXS Ports
SIP User ID -phone number.
GXW-4224
HT-812
